What is an automatic recirculation valve(arc valve) ?

What is an automatic recirculation valve(arc valve) ?

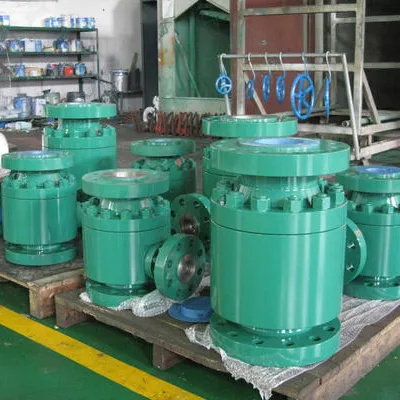

An automatic recirculation valve (arc valve)  is a kind of pump protection device. It automatically protects the centrifugal pump when a pump body occurs cavitation damage or unstable (especially conveying hot water at low load operation). Once pump flow is lower than the preset flow, bypass can completely open to ensure the minimum required flow pump. Even running fully closed, the name of the main flow is zero, the minimum flow can also discharge from the bypass.

Get A Quote
Features

Why Choose EDVC?

Plus type fully equipped

CNC machine tools ,large vertical lathes, drill press, milling lathe grinding machine , Welding machine , separate metal working workshops and many general machine tool etc.

Multiple tests

Material analysis, PMI Material analysis. Chemical analysis. Low temperature test, Tensile Test ,Impact test, Hardness test. Wall thickness test, roughness test. Torque test. NDT Inspection (MT,PT,UT,RT). HIC test ,SSC test . Intercrystalline corrosion Test ,Uniform corrosion Test.

Passed ISO certification

The company is the first one to pass ISO 9001(2008),ISO 14001 ,OHAS 18001 international quality system certificate, China pressure pipe safety registration certificate (AZ), European Union safety registration certificate (CE0036), and American Petroleum Institute Certificate (API 6D) and (API607) .

Industry Association Member

We are one of the member unit of China Valve Association as well as China Gas Association, member unit of first class supplying network of CNPC and member unit of fittings supplying network of State Power Corporation.

about EDVC

We Have The Best Solutions for Your Business

EDVC VALVE CO.,LTD.is a specialized in valve manufacturing enterprise with more than 15 years of history.We main produce Top Entry Ball Valve, Fully Welded Ball Valve, Arc Valve, Aluminum Bronze Valve, Automatic Recirculation Valve, Orbit Ball Valve, Safety Valve, Globe Valve, Tilting Disc Check Valve and Rising Stem Ball Valve etc.


The products have been exported to Austria, France, Germany, United Kingdom ,America, Middle East and Asia, Africa . areas and countries. Moreover, the products are widely used in the fields of oil & gas, Oil refinery, Petrochemical,power station ,Sewage treatment, pharmacy, Paper mills, pipeline industry , mining industry , chemical industry and environmental protection.

We are a professional manufacturer of valves in China, with the aim of "providing the first class products and services". On behalf of all of the members at EDVC Valve, we thank you for the opportunity to earn your business.

Read More

Solutions for pump protection-ARC valve

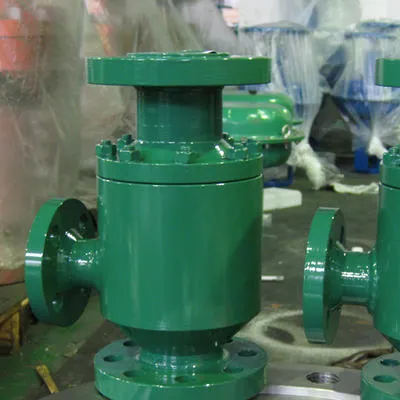

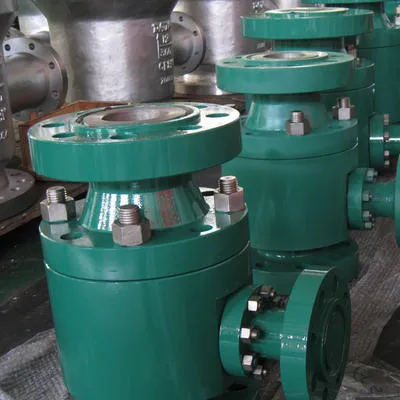

An automatic recirculation valve (ARC valve) is a multifunctional valve whose primary purpose is to ensure that a pre-determined minimum flow is assured through a centrifugal pump at all times. This is important as centrifugal pumps suffer from overheating and cavitation and can be permanently damaged if they run dry.

Through many years of research and development, continuous innovation and practice, EDVC VALVE CO. research Automatic recirculation control Valve, to prevent overheating, serious noise, unstable and erosion damage of centrifugal pump under low load operation. As long as the flow rate of the pump valve below a certain value, the bypass backflow mouth will automatically open to ensure the necessary minimum flow of the pump.

Frequently Asked Question

Do you have any question?

The modern industrial equipment process request centrifugal pump basically works under the condition of variable flow. An automatic recirculation valve (ARC valve) is a multifunctional valve whose primary purpose is to ensure that a pre-determined minimum flow is assured through a centrifugal pump at all times.

This valve closes when there is no flow, automatically opening the bypass line, which is sized for minimum flow. When the main line takes flow but less than minimum, the bypass line and the main line are both partially open.

Operation of a ARV Valve. The heart of the recirculation valve is a main flow sensing check valve disc, which is flow sensitive, not pressure sensitive. The disc modulates to the demand for process flow at the same time helping ensure a minimum flow through the pump.

Our updates and blog posts

arc-valve | Can you tell the material of these valves?

{keyword}.Many valves can adapt to a variety of working conditions, but if the valve material is unreasonably selected, the performance and service life of the valve will be greatly reduced.

arc-valve | Classification of valves

{keyword}.Valves are divided into gate valves, globe valves, butterfly valves, high-pressure valves, low-pressure valves, fluorine-lined valves, safety valves, pressure relief valves

arc-valve | Valve knowledge: valve terms

{keyword}.General purpose valve,cast iron valve,Cast steel valve,Stainless steel valve,bronze valve, Brass valve ,Forged valve,plastic valve,Ceramic valve,Faucet,Stop cock, stop valve
