The cryogenic ball valve is not only simple in structure and good in sealing performance, but also has a small volume, light weight, low material consumption, small installation size, and small driving torque within a certain nominal passage range. It is simple to operate and easy to achieve rapid opening and closing. It is one of the fast-developing valve varieties in the past ten years.
The cryogenic ball valve is suitable for various pipelines, used to cut off or connect the medium in the pipeline. Different materials are selected and can be applied to different temperatures and media respectively. The minimum working temperature is -196℃. The driving mode of the cryogenic ball valve is manual, worm gear drive, pneumatic or electric. Cryogenic ball valves generally adopt flange connection, but also can adopt welding connection.
Cryogenic ball valves are widely used, and the variety and quantity of use continue to expand, and they are developing in the direction of high temperature, high pressure, large diameter, high sealing performance, long life, excellent adjustment performance, and multi-function of one valve. Its reliability and other performance The indicators have reached a high level, and have partially replaced gate valves, globe valves, and throttle valves.
1. The structure of opening a pressure relief hole on the valve core is adopted.
2. The gasket is made of ceramic filling materials with stable sealing properties.
3. The valve body is light and small in size. In order to reduce the heat loss of the valve body, especially to ensure the use of the valve at ultra-low temperature, the valve body is specially designed to be light in weight and small in size.

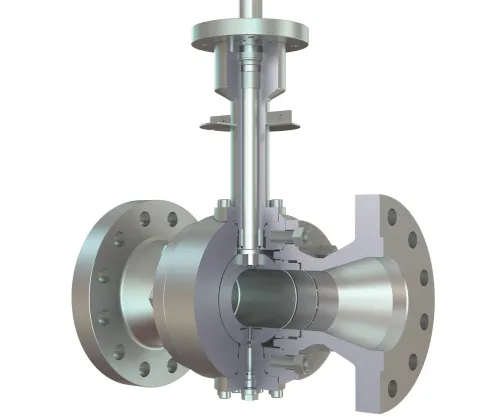

4. The long axis valve has a valve through which low temperature fluid flows. It adopts a long stem form, which can avoid the effect of external heat and keep the gland at room temperature to prevent the performance of the cover seal from being reduced. This length is the best length obtained through calculations and experiments.
Cryogenic valves include cryogenic ball valves, cryogenic gate valves, cryogenic globe valves, cryogenic safety valves, cryogenic check valves, cryogenic butterfly valves, cryogenic needle valves, cryogenic throttle valves, cryogenic pressure reducing valves, etc. The cryogenic valve is a valve suitable for medium temperature -40℃～ -196℃.
Etc. These valves are required to be operated to give assured leakage rates. These valves which are recommended to use below -50⁰C are designed with a extended bonnet which separates the operator and stem seal from the cold temperature. 12” gas column is a standard feature for these valves.
When the cryogenic ball valve is in the closed state, the temperature of the cryogenic liquid in the cavity of the valve body will increase, and the pressure will also increase. A small hole is machined on the ball to connect with the inlet end of the ball valve, so as to prevent the damage to the valve due to pressure rise. Therefore, the general cryogenic ball valve is directional and cannot be installed in reverse.
