CNC machine tools ,large vertical lathes, drill press, milling lathe grinding machine , Welding machine , separate metal working workshops and many general machine tool etc.
Material analysis, PMI Material analysis. Chemical analysis. Low temperature test, Tensile Test ,Impact test, Hardness test. Wall thickness test, roughness test. Torque test. NDT Inspection (MT,PT,UT,RT). HIC test ,SSC test . Intercrystalline corrosion Test ,Uniform corrosion Test.
The company is the first one to pass ISO 9001(2008),ISO 14001 ,OHAS 18001 international quality system certificate, China pressure pipe safety registration certificate (AZ), European Union safety registration certificate (CE0036), and American Petroleum Institute Certificate (API 6D) and (API607) .
We are one of the member unit of China Valve Association as well as China Gas Association, member unit of first class supplying network of CNPC and member unit of fittings supplying network of State Power Corporation.
EDVC VALVE CO.,LTD.is a specialized in valve manufacturing enterprise with more than 15 years of history.We main produce Top Entry Ball Valve, Fully Welded Ball Valve, Arc Valve, Aluminum Bronze Valve, Automatic Recirculation Valve, Orbit Ball Valve, Safety Valve, Globe Valve, Tilting Disc Check Valve and Rising Stem Ball Valve etc.
The products have been exported to Austria, France, Germany, United Kingdom ,America, Middle East and Asia, Africa . areas and countries. Moreover, the products are widely used in the fields of oil & gas, Oil refinery, Petrochemical,power station ,Sewage treatment, pharmacy, Paper mills, pipeline industry , mining industry , chemical industry and environmental protection.
We are a professional manufacturer of valves in China, with the aim of "providing the first class products and services". On behalf of all of the members at EDVC Valve, we thank you for the opportunity to earn your business.

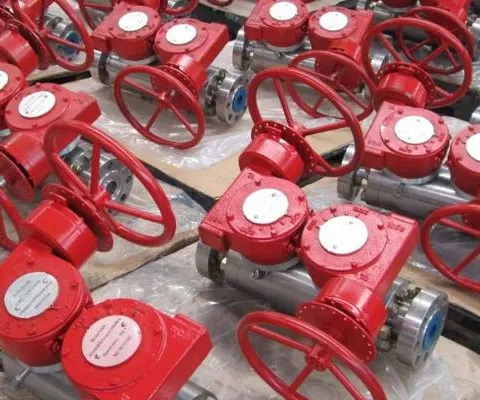

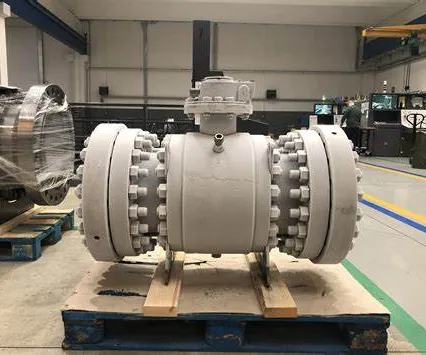

The cryogenic ball valve is suitable for various pipelines, used to cut off or connect the medium in the pipeline. Different materials are selected and can be applied to different temperatures and media respectively. The minimum working temperature is -196℃. The driving mode of the cryogenic ball valve is manual, worm gear drive, pneumatic or electric. Cryogenic ball valves generally adopt flange connection, but also can adopt welding connection.
1. The structure of opening a pressure relief hole on the valve core is adopted.
2. The gasket is made of ceramic filling materials with stable sealing properties.
3. The valve body is light and small in size. In order to reduce the heat loss of the valve body, especially to ensure the use of the valve at ultra-low temperature, the valve body is specially designed to be light in weight and small in size.
4. The long axis valve has a valve through which low temperature fluid flows. It adopts a long stem form, which can avoid the effect of external heat and keep the gland at room temperature to prevent the performance of the cover seal from being reduced. This length is the best length obtained through calculations and experiments.
The cryogenic ball valve is not only simple in structure and good in sealing performance, but also has a small volume, light weight, low material consumption, small installation size, and small driving torque within a certain nominal passage range. It is simple to operate and easy to achieve rapid opening and closing. It is one of the fast-developing valve varieties in the past ten years.
Cryogenic ball valves are widely used, and the variety and quantity of use continue to expand, and they are developing in the direction of high temperature, high pressure, large diameter, high sealing performance, long life, excellent adjustment performance, and multi-function of one valve. Its reliability and other performance The indicators have reached a high level, and have partially replaced gate valves, globe valves, and throttle valves.
Cryogenic valves include cryogenic ball valves, cryogenic gate valves, cryogenic globe valves, cryogenic safety valves, cryogenic check valves, cryogenic butterfly valves, cryogenic needle valves, cryogenic throttle valves, cryogenic pressure reducing valves, etc. The cryogenic valve is a valve suitable for medium temperature -40℃～ -196℃.
Etc. These valves are required to be operated to give assured leakage rates. These valves which are recommended to use below -50⁰C are designed with a extended bonnet which separates the operator and stem seal from the cold temperature. 12” gas column is a standard feature for these valves.
When the cryogenic ball valve is in the closed state, the temperature of the cryogenic liquid in the cavity of the valve body will increase, and the pressure will also increase. A small hole is machined on the ball to connect with the inlet end of the ball valve, so as to prevent the damage to the valve due to pressure rise. Therefore, the general cryogenic ball valve is directional and cannot be installed in reverse.
