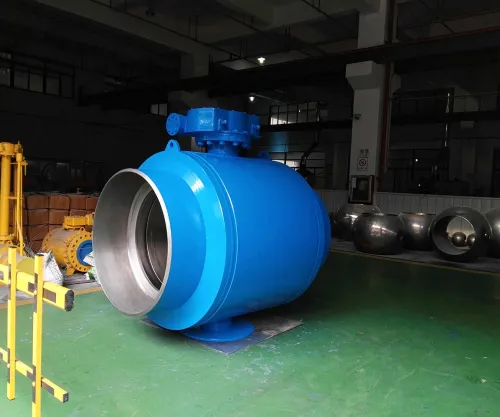

Fully welded ball valve

Fully welded ball valve

Fully welded ball valves are widely used in various fields. Its superior quality and high performance stability cannot be achieved by ordinary cast steel ball valves. The service life of fully welded ball valves is much longer than that of cast steel ball valves. Fully welded ball valves are widely used in cities. Gas, urban heating, petrochemical, shipbuilding, steel, pressure regulating stations, power plants and other pipeline equipment.

Get A Quote

Plus type fully equipped

CNC machine tools ,large vertical lathes, drill press, milling lathe grinding machine , Welding machine , separate metal working workshops and many general machine tool etc.

Multiple tests

Material analysis, PMI Material analysis. Chemical analysis. Low temperature test, Tensile Test ,Impact test, Hardness test. Wall thickness test, roughness test. Torque test. NDT Inspection (MT,PT,UT,RT). HIC test ,SSC test . Intercrystalline corrosion Test ,Uniform corrosion Test.

Passed ISO certification

The company is the first one to pass ISO 9001(2008),ISO 14001 ,OHAS 18001 international quality system certificate, China pressure pipe safety registration certificate (AZ), European Union safety registration certificate (CE0036), and American Petroleum Institute Certificate (API 6D) and (API607) .

Industry Association Member

We are one of the member unit of China Valve Association as well as China Gas Association, member unit of first class supplying network of CNPC and member unit of fittings supplying network of State Power Corporation.

about us

We Have The Best Solutions for Your Business

EDVC VALVE CO.,LTD.is a specialized in valve manufacturing enterprise with more than 15 years of history.We main produce Top Entry Ball Valve, Fully Welded Ball Valve, Arc Valve, Aluminum Bronze Valve, Automatic Recirculation Valve, Orbit Ball Valve, Safety Valve, Globe Valve, Tilting Disc Check Valve and Rising Stem Ball Valve etc.

The products have been exported to Austria, France, Germany, United Kingdom ,America, Middle East and Asia, Africa . areas and countries. Moreover, the products are widely used in the fields of oil & gas, Oil refinery, Petrochemical,power station ,Sewage treatment, pharmacy, Paper mills, pipeline industry , mining industry , chemical industry and environmental protection.

We are a professional manufacturer of valves in China, with the aim of "providing the first class products and services". On behalf of all of the members at EDVC Valve, we thank you for the opportunity to earn your business.

Learn More

Introduction of pressure rating of fully welded ball valve

1. For the high pressure level A (1.6MPa), it is recommended to use cast steel valves. WCB grade is usually used to manufacture valves with pressure levels below 4 MPa.
2. For transmission and distribution pipelines with water pressure lower than Class B (0.2MPa), it is recommended to use gray cast iron valves. The advantage is that it is highly corrosion resistant and inexpensive, making it very suitable for underground pipelines.
3. For pressures lower than medium A (0.4MPa) or higher pressures than B (0.8MPa), we recommend the use of ductile iron or cast steel, with emphasis on ductile iron. Example: Comparing ductile iron QT400-18 and cast steel WCB, the mechanical properties of the former are not inferior to the latter, its corrosion resistance and casting process are better than those of cast steel, and the price is lower. About 70% of cast steel (usually cast steel)) Therefore, the overall performance and price of ductile iron valves are better than those of cast steel valves. Ductile iron valves can be used within the above pressure range. However, special attention must be paid to monitoring the quality of ductile iron materials.

Introduction of pressure rating of fully welded ball valve

Test before using fully welded ball valve

After the production of the fully welded ball valve is completed, the test will be repeated because the product standard is very high. The thick-walled multilayer welding process for welding ball valves is usually made of metallic materials. Repeated heating and cooling processes can lead to uneven and degraded welded joint structure, resulting in higher residual stress and welding defects. Welding is the last step after product assembly, and since the valve cavity contains non-metallic sealing materials rubber and PTFE plastic, post-weld heat treatment is not allowed.

Test before using fully welded ball valve

Daily maintenance requirements for fully welded ball valves

It mainly means that there are operational requirements for sewage and grease injection, and the following guidelines need to be followed: When cleaning the pipeline, the sewage should be discharged as planned. After the water pressure test, before the arrival of the cold season. When draining water, the ball valve of the fully welded ball valve must be in a fully closed or fully open position. Slowly loosen the spool of the discharge valve until the pressure in the valve cavity is completely released, and then tighten the spool.

Daily maintenance requirements for fully welded ball valves

Product features of welded ball valve

The welded ball valve adopts an elastic sealing structure, which is reliable in sealing and easy to open and close. The valve stem adopts a bottom-mounted structure with an inverted seal, and the valve stem will not be rushed out when the valve cavity is abnormally increased in pressure. Ball valves are widely used in petroleum, chemical, urban water supply and drainage and other working conditions that require strict shut-off. Drive mode: manual, electric, pneumatic can be set with a 90° switch positioning mechanism, and lock as required to prevent misoperation. .

Product features of welded ball valve
Frequently Asked Question

Do you have any question?

Fully welded ball valve offers the advantage of a compact envelope, which allows for increased strength and significant reduction in weight. Furthermore, since the body is made by welding forged parts, there are fewer potential leak paths when compared to side-entry and top-entry ball valves.

ATV supplies fully welded ball valves in a wide range of materials and configurations to meet any specific need of the application and customer’s requirements. Many optional features are available for seat designs, seat and stem seals, and end connections.

The valve design that combines the maximum strength at the minimum weight, as well as a high resistance to pipeline internal and external loads.
