CNC machine tools ,large vertical lathes, drill press, milling lathe grinding machine , Welding machine , separate metal working workshops and many general machine tool etc.
Material analysis, PMI Material analysis. Chemical analysis. Low temperature test, Tensile Test ,Impact test, Hardness test. Wall thickness test, roughness test. Torque test. NDT Inspection (MT,PT,UT,RT). HIC test ,SSC test . Intercrystalline corrosion Test ,Uniform corrosion Test.
The company is the first one to pass ISO 9001(2008),ISO 14001 ,OHAS 18001 international quality system certificate, China pressure pipe safety registration certificate (AZ), European Union safety registration certificate (CE0036), and American Petroleum Institute Certificate (API 6D) and (API607) .
We are one of the member unit of China Valve Association as well as China Gas Association, member unit of first class supplying network of CNPC and member unit of fittings supplying network of State Power Corporation.
EDVC VALVE CO.,LTD.is a specialized in valve manufacturing enterprise with more than 15 years of history.We main produce Top Entry Ball Valve, Fully Welded Ball Valve, Arc Valve, Aluminum Bronze Valve, Automatic Recirculation Valve, Orbit Ball Valve, Safety Valve, Globe Valve, Tilting Disc Check Valve and Rising Stem Ball Valve etc.
The products have been exported to Austria, France, Germany, United Kingdom ,America, Middle East and Asia, Africa . areas and countries. Moreover, the products are widely used in the fields of oil & gas, Oil refinery, Petrochemical,power station ,Sewage treatment, pharmacy, Paper mills, pipeline industry , mining industry , chemical industry and environmental protection.
We are a professional manufacturer of valves in China, with the aim of "providing the first class products and services". On behalf of all of the members at EDVC Valve, we thank you for the opportunity to earn your business.
The special process of key parts and components is processed (grinding) and hard chromium plating of the inner cavity of the valve, so that the inner cavity of the valve has rust resistance, erosion resistance, abrasion resistance and corrosion resistance. After the slider is machined (before pressing the fluorine rubber), it is treated with hard chromium plating to make the metal sealing surface of the slider have rust resistance, erosion resistance, abrasion resistance and corrosion resistance. After mechanical processing, the cock is nickel-plated, and the cock and the upper and lower shafts are resistant to rust and corrosion.

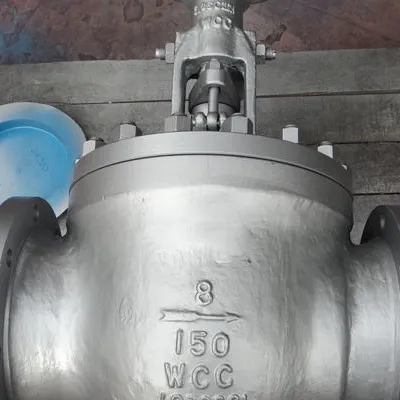

Orbital plug valves are mostly used for aviation kerosene, natural gas, liquefied petroleum gas, refined oil, etc. Because aviation kerosene and other media have strong permeability and are flammable and explosive, in order to prevent external leakage of the medium, they are used at the middle flange. Double sealing structure with O-ring and spiral wound gasket
When the orbital plug valve is fully opened, the passage of the plug is aligned with the passage of the valve body, which can ensure the ideal lowest pressure drop. Turn the handwheel plug to turn toward the valve, and at the same time drive the valve plate to rotate 90 degrees. When you continue to turn the handwheel, the plug will press down to open the valve to both sides, and the valve plate will tightly press on the valve seat. Close the valve; when the handwheel rotates in the opposite direction, first move the plug upwards to disengage the valve plate from the valve seat, continue to turn the handwheel, make the plug drive the valve plate to rotate 90 degrees, and finally the passage of the plug is the passage of the valve body Align so that the valve is in a fully open state.
Orbital plug valves usually have three pressure relief systems.
a. Manual pressure relief system (used for manual operation of valves).
b. Differential pressure relief system (used for manual and electric operation valves).
c. Automatic pressure relief system (used for electrically operated valves).
Usually available in cylindrical or conical shapes, plug valves are quarter-turn manual motion valves used for stopping or starting the flow of fluid. They offer on-off, diverting, as well as basic moderate throttling services.
Plug valves offer better performance in the term of cutting than ball valves, but that doesn't show obviously. The sealing surface of the plug valve is much larger than the ball valve and supplies a better sealing effect, but a greater torque and small diameter.
When an ORBIT valve begins to open, the core tilts away from the seat and line flow passes uniformly around the core face. This eliminates the localized high-velocity flow that typically creates uneven seat wear in ordinary ball, gate and plug valves. The core then rotates to the fully open position.
