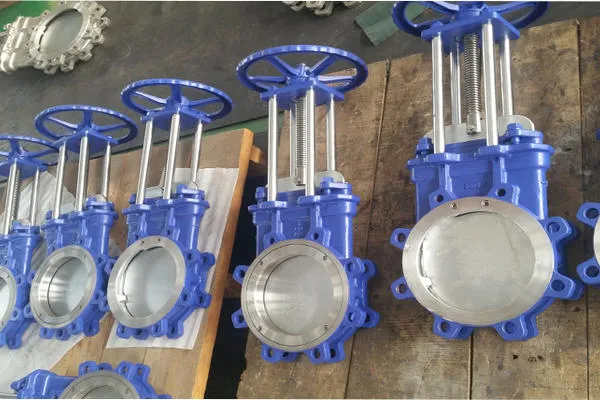

What is rising stem gate valve?

The opening and closing part of the gate valve is the gate. The movement direction of the gate is perpendicular to the direction of the fluid. The gate valve can only be fully opened and fully closed, and cannot be adjusted or throttled.
The gate has two sealing surfaces. The two sealing surfaces of the most commonly used model gate valve form a wedge. The wedge angle varies with valve parameters, usually 50, and 2°52' when the medium temperature is not high. The gate of the wedge gate valve can be made into a whole, called a rigid gate; it can also be made into a gate that can produce a small amount of deformation to improve its manufacturability and make up for the deviation of the sealing surface angle during the processing. The plate is called an elastic gate.

Get A Quote
Features

Why Choose EDVC?

Plus type fully equipped

CNC machine tools ,large vertical lathes, drill press, milling lathe grinding machine , Welding machine , separate metal working workshops and many general machine tool etc.

Multiple tests

Material analysis, PMI Material analysis. Chemical analysis. Low temperature test, Tensile Test ,Impact test, Hardness test. Wall thickness test, roughness test. Torque test. NDT Inspection (MT,PT,UT,RT). HIC test ,SSC test . Intercrystalline corrosion Test ,Uniform corrosion Test.

Passed ISO certification

The company is the first one to pass ISO 9001(2008),ISO 14001 ,OHAS 18001 international quality system certificate, China pressure pipe safety registration certificate (AZ), European Union safety registration certificate (CE0036), and American Petroleum Institute Certificate (API 6D) and (API607) .

Industry Association Member

We are one of the member unit of China Valve Association as well as China Gas Association, member unit of first class supplying network of CNPC and member unit of fittings supplying network of State Power Corporation.

about EDVC

We Have The Best Solutions for Your Business

EDVC VALVE CO.,LTD.is a specialized in valve manufacturing enterprise with more than 15 years of history.We main produce Top Entry Ball Valve, Fully Welded Ball Valve, Arc Valve, Aluminum Bronze Valve, Automatic Recirculation Valve, Orbit Ball Valve, Safety Valve, Globe Valve, Tilting Disc Check Valve and Rising Stem Ball Valve etc.


The products have been exported to Austria, France, Germany, United Kingdom ,America, Middle East and Asia, Africa . areas and countries. Moreover, the products are widely used in the fields of oil & gas, Oil refinery, Petrochemical,power station ,Sewage treatment, pharmacy, Paper mills, pipeline industry , mining industry , chemical industry and environmental protection.

We are a professional manufacturer of valves in China, with the aim of "providing the first class products and services". On behalf of all of the members at EDVC Valve, we thank you for the opportunity to earn your business.

Read More

Types of rising stem gate valve

According to the sealing surface configuration, it can be divided into wedge gate valve and parallel gate valve. Wedge gate valve can be divided into: single gate, double gate and elastic gate; parallel gate valve can be divided into single gate And double gate type. Divided according to the thread position of the valve stem, it can be divided into two types: open stem gate valve and dark stem gate valve.

Featured Products

Collection about EDVC

Frequently Asked Question

Do you have any question?

Rising Stem Ball Valve – RSBV. Valbart RSBV Rising Stem Ball Valves are the oil and gas industry’s choice for applications requiring a mechanically energized metal or soft seat to prevent losses from process contamination or material leakage.

ORBIT rising stem ball valve incorporate a proven tilt-and-turn operation that eliminates seal rubbing, which is the primary cause of valve failure. The absence of seal rubbing during both opening and closing means easy, low-torque valve operation and long-term reliable performance.

When an ORBIT rising stem ball valve is closed, the core is mechanically wedged tightly against the seat, ensuring positive shutoff. When a valve begins to open, the core tilts away from the seat and line flow passes uniformly around the core face.

Our updates and blog posts

rising-stem-ball-valve | Can you tell the material of these valves?

{keyword}.Many valves can adapt to a variety of working conditions, but if the valve material is unreasonably selected, the performance and service life of the valve will be greatly reduced.

rising-stem-ball-valve | Classification of valves

{keyword}.Valves are divided into gate valves, globe valves, butterfly valves, high-pressure valves, low-pressure valves, fluorine-lined valves, safety valves, pressure relief valves

rising-stem-ball-valve | Valve knowledge: valve terms

{keyword}.General purpose valve,cast iron valve,Cast steel valve,Stainless steel valve,bronze valve, Brass valve ,Forged valve,plastic valve,Ceramic valve,Faucet,Stop cock, stop valve
