CNC machine tools ,large vertical lathes, drill press, milling lathe grinding machine , Welding machine , separate metal working workshops and many general machine tool etc.
Material analysis, PMI Material analysis. Chemical analysis. Low temperature test, Tensile Test ,Impact test, Hardness test. Wall thickness test, roughness test. Torque test. NDT Inspection (MT,PT,UT,RT). HIC test ,SSC test . Intercrystalline corrosion Test ,Uniform corrosion Test.
The company is the first one to pass ISO 9001(2008),ISO 14001 ,OHAS 18001 international quality system certificate, China pressure pipe safety registration certificate (AZ), European Union safety registration certificate (CE0036), and American Petroleum Institute Certificate (API 6D) and (API607) .
We are one of the member unit of China Valve Association as well as China Gas Association, member unit of first class supplying network of CNPC and member unit of fittings supplying network of State Power Corporation.
EDVC VALVE CO.,LTD.is a specialized in valve manufacturing enterprise with more than 15 years of history.We main produce Top Entry Ball Valve, Fully Welded Ball Valve, Arc Valve, Aluminum Bronze Valve, Automatic Recirculation Valve, Orbit Ball Valve, Safety Valve, Globe Valve, Tilting Disc Check Valve and Rising Stem Ball Valve etc.
The products have been exported to Austria, France, Germany, United Kingdom ,America, Middle East and Asia, Africa . areas and countries. Moreover, the products are widely used in the fields of oil & gas, Oil refinery, Petrochemical,power station ,Sewage treatment, pharmacy, Paper mills, pipeline industry , mining industry , chemical industry and environmental protection.
We are a professional manufacturer of valves in China, with the aim of "providing the first class products and services". On behalf of all of the members at EDVC Valve, we thank you for the opportunity to earn your business.
It has logical structure, reliable seal, excellent performance and nice design.
It has the structure of flip-chip balanceable pressure and light on/off operation.
An oil groove is set between valve body and seal surface, which may infuse the seal grease to increase the seal capability.
The part materials and flange dimension may be selected according to current operating condition and users requirement, so that meet the requirements of various engineering.
1. The product structure is reasonable, the sealing is reliable, the performance is excellent, and the appearance is beautiful.
2. Inverted pressure balanced structure, light switch action.
3. There is an oil groove between the valve body and the sealing surface, and the sealing grease can be injected into the valve seat through the oil nozzle at any time to increase the sealing performance.
4. The material and flange size of the parts can be reasonably selected according to actual working conditions or user requirements to meet various engineering needs.

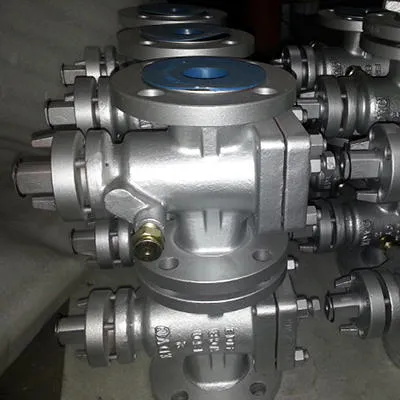

The back pressure balance plug valve is widely used in petroleum, chemical, pharmaceutical, fertilizer, electric power and other industries. The nominal pressure is CLASS150-1500LBS, the working temperature is -40~450°C, water, gas, steam, oil, etc.
Plug Valve is an auxiliary valve used in opening and throttling of high pressurized systems. It is used as bypas to the line valve; it balances the pressure and provides the safe opening of line valve.Plug valves have a conical or cylindrical obturator rotating around the axis perpendicular to the flow direction.

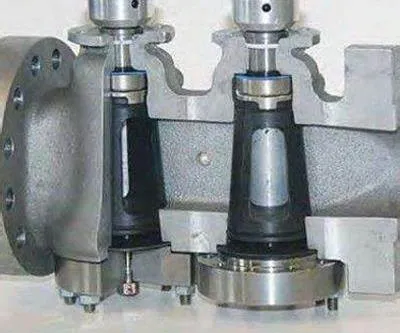

Uniqueness of dynamically and pressure balanced design together with inverted plug design, assure prevention of locking, which has been the problems of conventional design at higher pressure application. Pressure Balance Lubricated Plug valves are manufactured using a wide range of materials to suit the service applications..
In order to reduce the torque of conventional hard-seal plug valves, pressure balanced plug valves are often used.
Pressure-balanced inverted oil-sealed plug valves are widely used in pipelines in various working conditions such as petrochemical, pharmaceutical, fertilizer, and power industries to cut off or connect pipeline media. .
