CNC machine tools ,large vertical lathes, drill press, milling lathe grinding machine , Welding machine , separate metal working workshops and many general machine tool etc.
Material analysis, PMI Material analysis. Chemical analysis. Low temperature test, Tensile Test ,Impact test, Hardness test. Wall thickness test, roughness test. Torque test. NDT Inspection (MT,PT,UT,RT). HIC test ,SSC test . Intercrystalline corrosion Test ,Uniform corrosion Test.
The company is the first one to pass ISO 9001(2008),ISO 14001 ,OHAS 18001 international quality system certificate, China pressure pipe safety registration certificate (AZ), European Union safety registration certificate (CE0036), and American Petroleum Institute Certificate (API 6D) and (API607) .
We are one of the member unit of China Valve Association as well as China Gas Association, member unit of first class supplying network of CNPC and member unit of fittings supplying network of State Power Corporation.
EDVC VALVE CO.,LTD.is a specialized in valve manufacturing enterprise with more than 15 years of history.We main produce Top Entry Ball Valve, Fully Welded Ball Valve, Arc Valve, Aluminum Bronze Valve, Automatic Recirculation Valve, Orbit Ball Valve, Safety Valve, Globe Valve, Tilting Disc Check Valve and Rising Stem Ball Valve etc.
The products have been exported to Austria, France, Germany, United Kingdom ,America, Middle East and Asia, Africa . areas and countries. Moreover, the products are widely used in the fields of oil & gas, Oil refinery, Petrochemical,power station ,Sewage treatment, pharmacy, Paper mills, pipeline industry , mining industry , chemical industry and environmental protection.
We are a professional manufacturer of valves in China, with the aim of "providing the first class products and services". On behalf of all of the members at EDVC Valve, we thank you for the opportunity to earn your business.
Centrifugal pumps transform mechanical energy into pressure energy by means of centrifugal force resulting from impeller rotation acting on the fluid within the pump. The pump requires a minimum liquid flow in order to avoid overheating. If a predefined minimum flow is not maintained, the pump can be permanently damaged.
The ARV mechanically save the centrifugal pumps which pumps body lead to cavitation damage or unstable, once pump is flow lower than the current flow, bypass can fully open to make sure the minimum needed flow pump. Our ARV has superior performance and long-lasting service life. Acting as a non-return or bypass valve, it also offer protection for pumps against cavication and overheating, and save against the reversal of flow during shut down.
ARV or automatic recirculation valve is a multifunctional valve whose initial objective is to make sure that a pre-determined minimum flow is assured via a centrifugal pump at all times. This in turn has created a need for centrifugal pumps with low and high heads specific requirements.

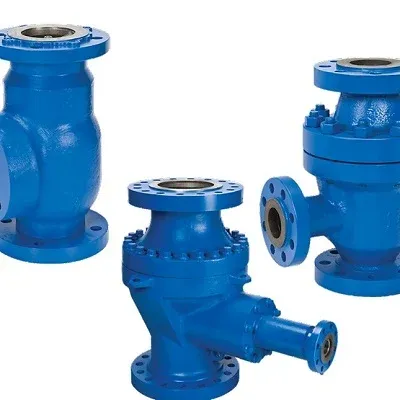

ARV valve stands for Automatic Recirculation Valve.
An automatic recirculation valve is a multifunctional valve whose primary purpose is to ensure that a pre-determined minimum flow is assured through a centrifugal pump at all times. This is important as centrifugal pumps suffer from over heating and cavitation and can be permanently damaged if they run dry.
Operation of a ARV Valve. The heart of the recirculation valve is a main flow sensing check valve disc, which is flow sensitive, not pressure sensitive. The disc modulates to the demand for process flow at the same time helping ensure a minimum flow through the pump.
Automatic recirculation valves, sometimes referred to as pump protection valves or minimum flow valves are installed on the outlet of a centrifugal pump discharge line. Their purpose is to prevent the pump from overheating by ensuring that there is a minimum flow through the pump at all times.
Minimum Flow or Automatic Recirculation Valves automatically protect centrifugal pumps during low load operation. As the pump's load drops below a preset flow rate, the valve's disc moves towards its seat and causes the bypass bush to open a bypass flow path. The pump minimum flow rate is thus reached and maintained.
The automatic circulation valve is self-contained and does not require manual operation. Automatic recirculation valve, also known as pump protection valve or minimum flow valve, is used for automatic recirculation of the minimum flow of the centrifugal pump to prevent damage to the centrifugal pump due to overheating, noise, and vibration under low load.
